Applied Models:
SS-439 Pro SS-839 Pro TS-110 TS-119 TS-210 TS-219
TS-219P TS-239 Pro TS-239 Pro II TS-259 Pro TS-410 TS-410U
TS-419P TS-419U TS-439 Pro TS-439 Pro II TS-439U-RP TS-439U-SP
TS-459 Pro TS-459U-RP TS-459U-SP TS-509 Pro TS-559 Pro TS-639 Pro
TS-659 Pro TS-809 Pro TS-809U-RP TS-859 Pro TS-859U-RP

Set up and Host your phpBB forum on QNAP NAS

"Host your own community forum on QNAP"

Contents

Save your bucks on hosting company

Think it's difficult and costly to setup your own community forum? Not any more, and this guide will demonstrate within a few steps you can have your community forum setup and going online right away. Note that we will be using the popular open source forum software phpbb as an example here.

Activate the web server and the MySQL database server

Login to the administration page and then go to 'Network Services' > 'Web Server'. Tick the checkbox 'Enable Web server' and click on 'Apply'.

Enable the Apache web server

Next go to 'Applications' > 'MySQL Server' and tick both 'Enable MySQL Server' and 'Enable TCP/IP Networking' checkboxes then click on the 'Apply' botton.

Enable the MySQL database server

Create a database for phpBB3 in phpMyAdmin

Prior to installing phpBB3, we need to create a new database for it and we will use phpMyAdmin to create the database so install phpMyAdmin QPKG if you do not have it running on your NAS yet. (phpMyAdmin QPKG can be downloaded from here) Once installed point your broswer to http://NAS-IP-Adress/phpMyAdmin/ and enter the user name and password to login (default username and password is root/admin). You can also select your preferred language.

phpMyAdmin login screen

Once in, enter the database name 'phpbb3' in the field says 'Create new database' and choose a default encoding language you prefer (UTF-8 for best compatibility) then click on 'Create' button. That's it you may now proceed to step 3.

Database name and language encoding options

Start the phpBB3 web-based installation

Download the phpbb3 source archive from this URL (http://www.phpbb.com/downloads/olympus.php) and download the [Full Package] one and unzip it to your Qweb share.

Download the phpBB3 install package

Point your browser to "http://Your-NAS-IP/phpBB3" and you should see the phpBB3 web-based installation page like below. Now click on 'INSTALL' tab to start.

phpBB3 web-based installation

Simply click on 'Proceed to next step' button to go to the next step.

phpBB3 - Welcome to installation

In most of the cases your current web server should be compatible with the requirements so click on the 'Start install' button to go the next step.

phpBB3 - Installation compatibility

Fill up the fields with your MySQL information including the hostname, database name, database username and database password then click on 'Proceed to next step' to continue.

phpBB3 database settings

You should see 'Successful connection' if your MySQL server is running and the database 'phpbb3' we created earlier is present. Now click on 'Proceed to next step' to continue.

phpBB3 Test MySQL connection

Specify the phpBB3 administrator username and password as well as a valid email address. Once done, click on 'Proceed to next step' to continue.

phpBB3 administrator details

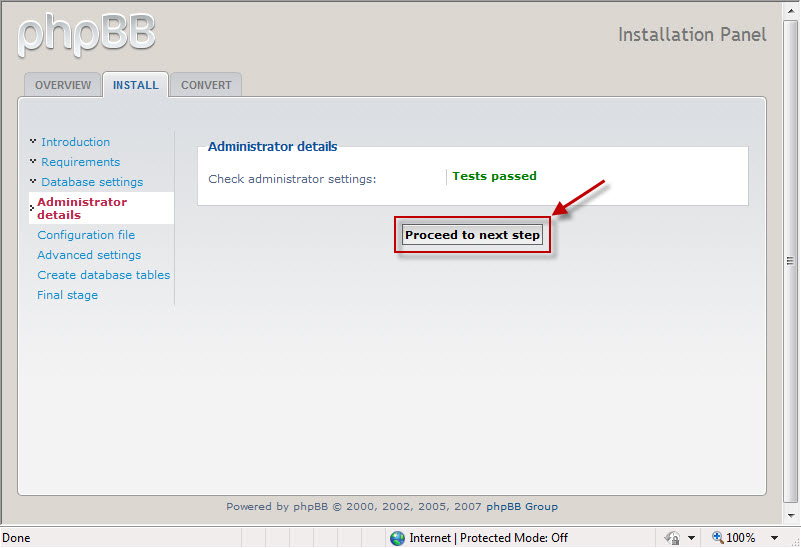

You should see 'Tests passed' and click on 'Proceed to next step' to continue.

phpBB3 administrator details settings passed

phpBB3 writes all the settings information to a configuration file (config.php) at this stage. Click on 'Proceed to next step' to continue.

phpBB3 configuration file created

Here you can specify advanced settings if you wish then click on 'Proceed to next step' to continue.

phpBB3 advanced settings

phpBB3 creates all the database tables and populates some initial data at this stage. Click on 'Proceed to next step' to continue.

phpBB3 create database tables

Congratulations! That's it. Now there's one more thing you need to do is that you have to delete the installation folder located under the phpBB3 folder. Once deleted you can click on 'Login' button to enter the administration page of phpBB3.

phpBB3 installation completed

This is the phpBB3 Administration Control Panel where you can perform all administrative tasks.

phpBB3 Administration Control Panel

This is the front page of your freshly installed phpBB3 forum. Start sending out forum invitations to establish your online community!

phpBB3 front page
